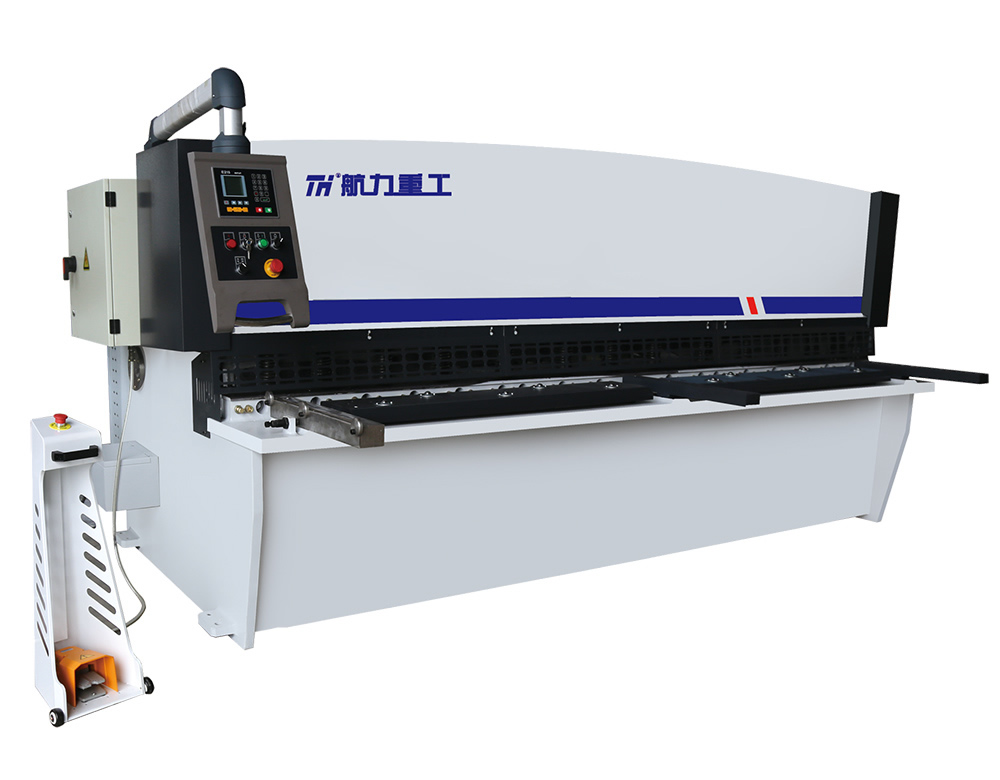

產品詳情主機采用QC12Y系列液壓擺式剪板機結構；

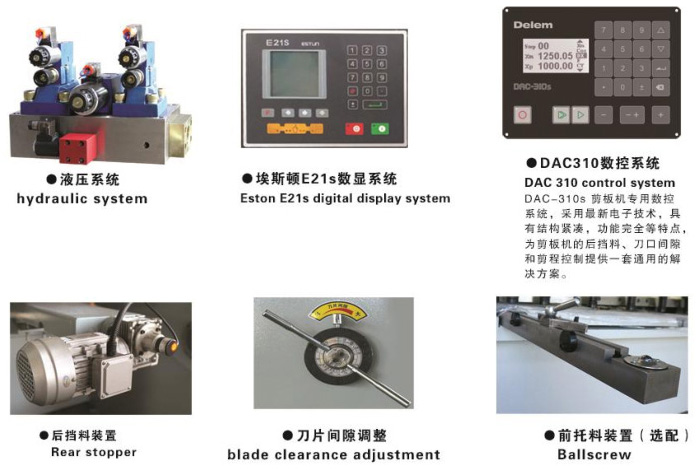

數控系統選用DELEM專用剪板機數控系統。
后擋料電機選用進口交流伺服電機。
后擋料絲桿選用進口滾珠絲桿+直線導軌。
根據用戶需要可選用其他型號數控系統。
技術參數
|
規格型號 |
可剪板厚mm |
可剪板寬mm |
剪切角 |
行程次數 |
后擋料范圍mm |
主電機功率KW |
|
QC12K-4×2500 |
4 |
2500 |
1°30' |
18 |
20-600 |
4 |
|
QC12K-4×3200 |
4 |
3200 |
1°30' |
18 |
20-600 |
7.5 |
|
QC12K-4×4000 |
4 |
4000 |
1°30' |
12 |
20-600 |
7.5 |
|
QC12K-4×6000 |
4 |
6000 |
1°30' |
7 |
20-800 |
11 |
|
QC12K-6×2500 |
6 |
2500 |
1°30' |
18 |
20-600 |
7.5 |
|
QC12K-6×3200 |
6 |
3200 |
1°30' |
14 |
20-600 |
7.5 |
|
QC12K-6×4000 |
6 |
4000 |
1°30' |
12 |
20-600 |
7.5 |
|
QC12K-6×6000 |
6 |
6000 |
1°30' |
7 |
20-800 |
11 |
|
QC12K-8×2500 |
8 |
2500 |
1°30' |
14 |
20-600 |
11 |
|
QC12K-8×3200 |
8 |
3200 |
1°30' |
10 |
20-600 |
11 |
|
QC12K-8×4000 |
8 |
4000 |
1°30' |
8 |
20-600 |
11 |
|
QC12K-10×2500 |
10 |
2500 |
1°30' |
10 |
20-600 |
11 |
|
QC12K10×3200 |
10 |
3200 |
1°30' |
10 |
20-600 |
11 |
|
QC12K-10×4000 |
10 |
4000 |
1°30' |
8 |
20-600 |
11 |
|
QC12K-12×2500 |
12 |
2500 |
2° |
10 |
20-600 |
15 |
|
QC12K-12×3200 |
12 |
3200 |
2° |
9 |
20-600 |
15 |
|
QC12K-12×4000 |
12 |
4000 |
2° |
8 |
20-600 |
18.5 |
|
QC12K-12×6000 |
12 |
6000 |
2° |
6 |
20-600 |
18.5 |
|
QC12K-16×2500 |
16 |
2500 |
2° |
8 |
20-800 |
18.5 |
|
QC12K-16×3200 |
16 |
3200 |
2° |
7 |
20-600 |
18.5 |
|
QC12K-16×4000 |
16 |
4000 |
2° |
5 |
20-600 |
18.5 |
|
QC12K-20×2500 |
20 |
2500 |
2°30' |
7 |
20-800 |
22 |
|
QC12K-20×3200 |
20 |
3200 |
2°30' |
6 |
20-800 |
22 |
|
QC12K-20×4000 |
20 |
4000 |
2°30' |
5 |
20-800 |
22 |
|
QC12K-25×2000 |
25 |
2000 |
3° |
8 |
20-800 |
37 |
|
QC12K-25×2500 |
25 |
2500 |
3° |
6 |
20-800 |
37 |
|
QC12K-25×3200 |
25 |
2500 |
3° |
5 |
20-800 |
37 |
|
QC12K-25×4000 |
25 |
4000 |
3° |
4 |
20-800 |
37 |
|
QC12K-32×2500 |
32 |
2500 |
3° |
|
20-1000 |
45 |
|
QC12K-32×3200 |
30 |
3200 |
3° |
4 |
20-1000 |
45 |
|
QC12K-40×2500 |
40 |
2500 |
3° |
4 |
20-1000 |
55 |
